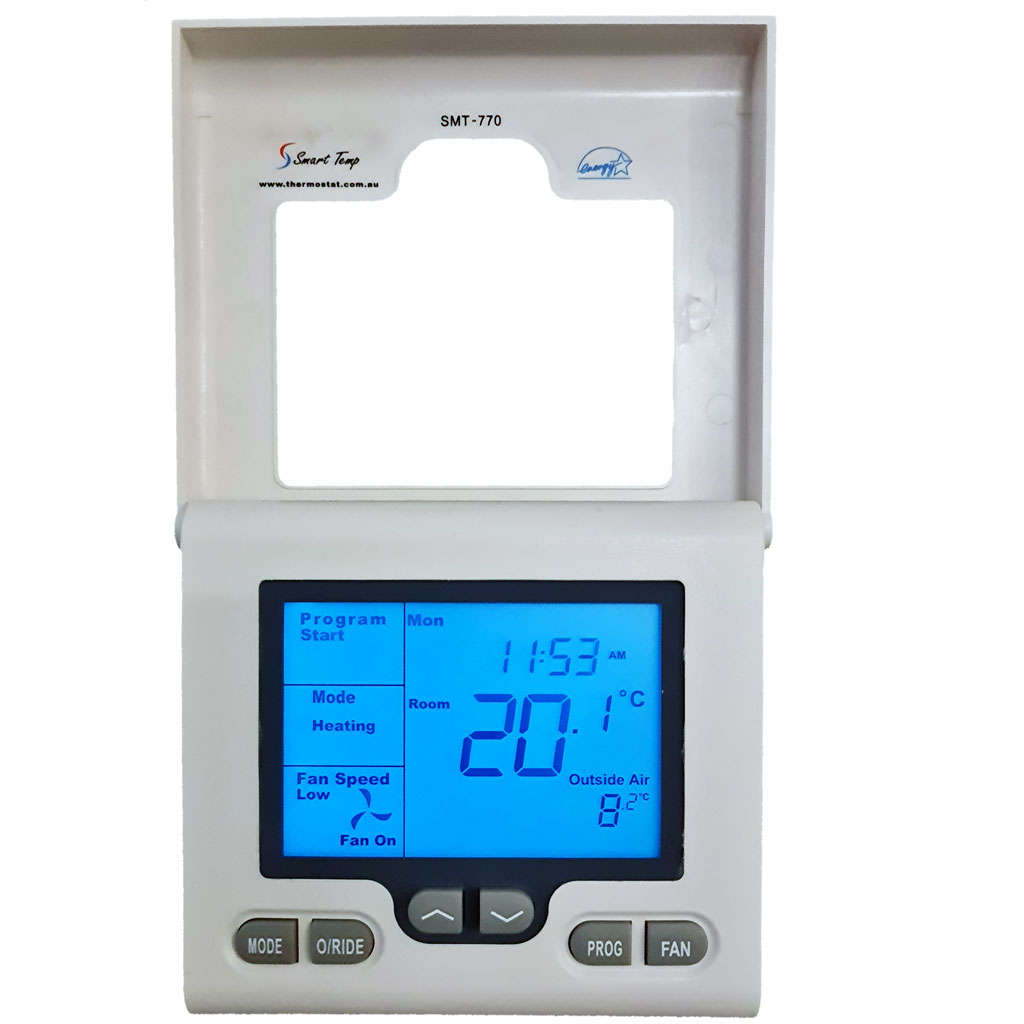

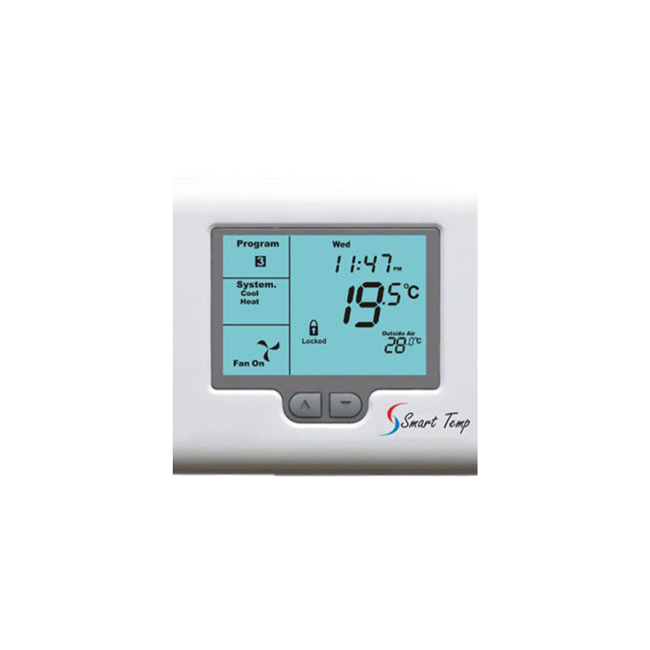

SMT-770 Chameleon Thermostat

Description

This Smart Thermostat is like the reptile that it takes its name from, the SMT-770 Chameleon Smart thermostat adapts quickly to suit its surroundings – a single thermostat that can control almost any type of heating, cooling or air conditioning system as well as meet all the individual needs of the people using it.
The installer is able to configure the SMT-770 Chameleon to control Heat pump systems, (with auxiliary or emergency heating if necessary), gas/oil heating systems with add on cooling, control high and low balance points as well as the number of heating and cooling stages needing precise control. It can even adapt to manage the number of fan speeds it must
control. The user can choose their SMT-770 Chameleon to be programmable or manual with single or multiple set points or the number programs as required, and then if they change their mind, the SMT-770 Chameleon will adapt without fuss to suit their new needs. When larger projects are considered, or central control is necessary then the SMT-770 Chameleon has integrated Modbus communication. Every function and setting within the Chameleon can be viewed, locked, changed or edited from a centralised location as desired or automatically from a suitable building management system.

Downloads

Brochure
User Manual
Installer Manual
ModBus List

SMT-770 Chameleon

Download Preview

1 2 Next »

Features

Auto Season Change Over.
Selectable programmable or manual mode.
Heat cool or heat pump (O/B) logic.
Add on & Emergency Heat Control.
High & Low balance points.
Single or 3 speed fan control.
Keyboard and/or Temperature Locks.
Occupancy sensor inputs.
Programmable occupancy inputs.
Adaptive Recovery (Optimised Start).
Smart Fan logic for Commercial Control.
PIN protected menus (installer PIN).
Outside air temperature display.
24V powered with memory backup.
Volt Free (clean contact) relays.
Large backlit EL Display.
Remote temperature sensors available.
Integrated Modbus option.
Replaces almost all 24V thermostats.
3 Year Warranty RTB
Designed and built by Smart Temp Australia
Suitable replacement for Smart Temp ISIS, SMT-310, SMT-200, SMT-203, enerstat , Hanwest, Aprilaire and Robertshaw Thermostats,enerstat, robertshaw, TZT-100, HAWEST, Leasam

Replaces

Replaces:

enerstat HP-1, HP-2, SMS-1, SHC-7, SHP-2, DSl-300, DSL400, DSL-600 & DSL-700

Robertshaw 9600, 300-225, 300-226, RS4220, RS4000, RS9220
