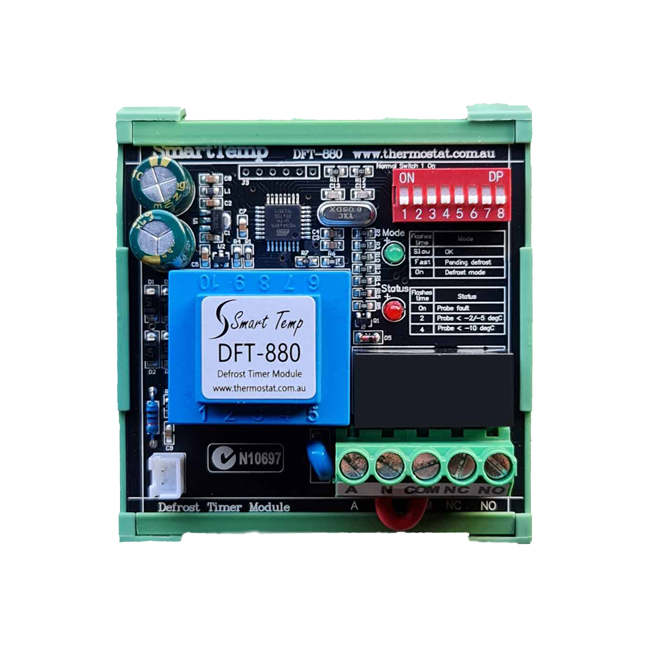

DFT-880 Defrost Module

Description

The DFT-880 uses a powerful microprocessor to accurately monitor and control all functions of the de-ice process. Further the DFT-880 indicates the current status via 2 clearly marked LEDS. This advanced control logic helps ensure the de-ice process is accurately controlled to ensure best HVAC equipment performance. To offer the most value for your investment the DFT-880 operational parameters can be easily fine tuned to suite the demands of the particular reverse cycle unit the DFT-880 is servicing. Simply by changing some DIP switch settings the de-ice initiation temperature, the de-ice termination temperature as well as the de-ice inhibit time.

Specifications

Power Supply 240VAC +/- 5% @ 50Hz
Relay Rating 10A @240VAC (max)
Size 75 x 75 x 50mm
LEDS Green – (De-Ice indication)
Red – (Errors & Coil Temp)
Defrost Initiation – 2c or – 5c selectable
Defrost Confirmation Automatic on coil temp
Defrost Termination +10c or +15c
5min, 10min, 15min or 20min
Sensor Type 10K NTC Type II
Sensor Length 1.8 Meters typically
Range -30c ~ 50c
Storage conditions -20 + 70c <95% non condensing
Operational Cond. -15 + 60 < 95% non condensing
Warranty 2Years RTB

Downloads

Brochure I nstaller Manual

Features

LED status indication.
10A relay.
Adjustable control parameters.
Test mode.
Force de-ice mode.
DIN mounted.
Small footprint.
Full product support
Replaces –
MJB EDF-02
Avion DFT125 / DFT126Avion TRN 003 / TRN003
ICM315
Saginomiya SFB-X356
Saginomiya DDEKBA1519RQ
Ranco E15-2217-257

Replaces

MJB EDF-02A
Avion DFT125
TRN0003
